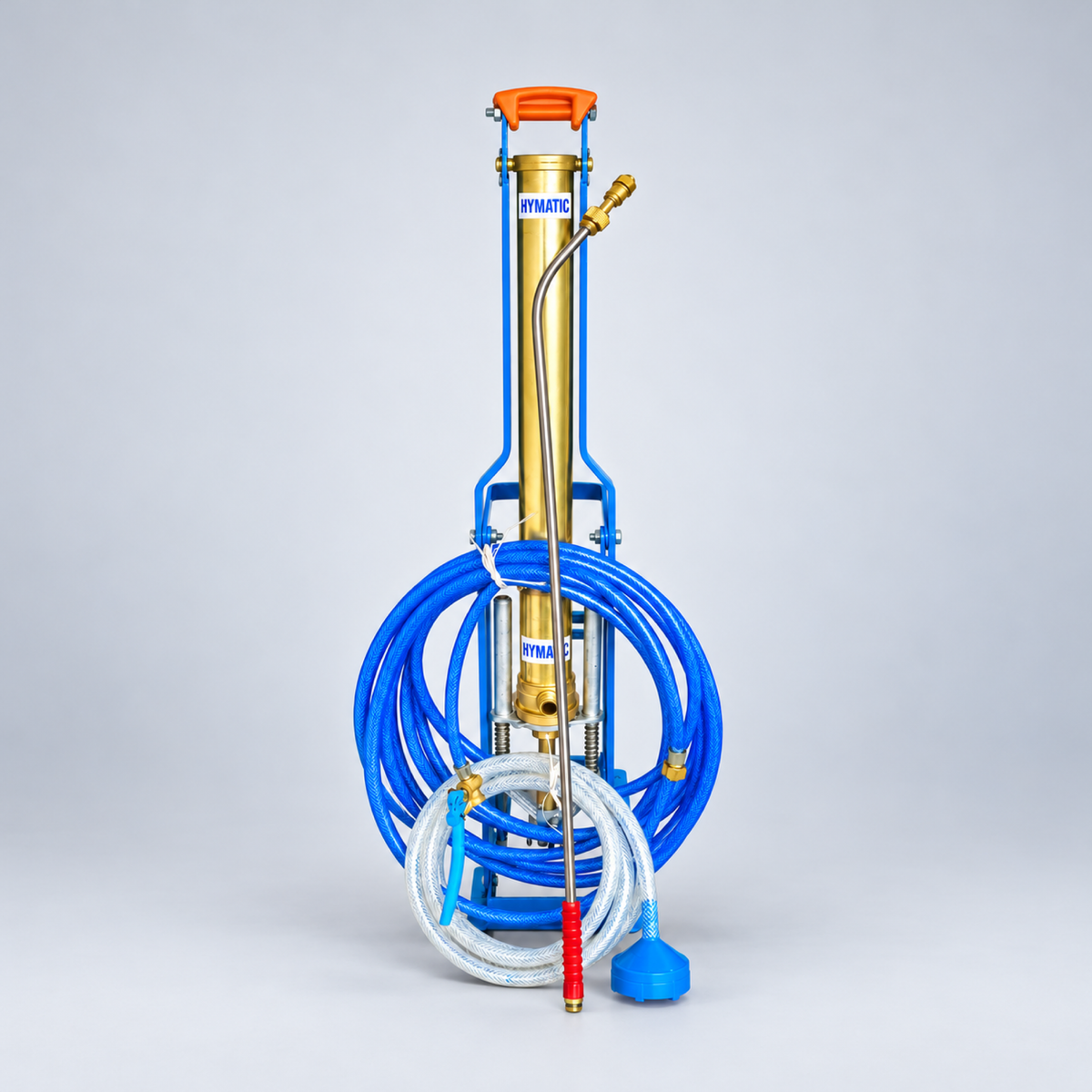

HYMATIC HY-301 Foot Sprayer for Agriculture

Model No: HY-301
Product Type: Foot sprayer
Brand: HYMATIC
Average Working Pressure: 6 Bar
Minimum Discharge: 1200 ml per mins
Operated: Manually Foot
Spraying Height: 20 Feet (6 metre)
Standard Compliance: ISI (IS:3652)
Dimension: 8 x 8 x 40 inch (20.32 x 20.32 x 101.6 cm) Approx. (L X W x B)
Weight: 10.08 Kg (Approx)

Accessories:
Foot Sprayer
10 Meter Delivery Hose Pipe or Depending on requirement
2 mtr suction hose

Features:
• Pump barrel and pressure chamber made from seamless brass tubing.
• Equipped with a double compression spring mechanism.
• Sprays to a height of up to 20 feet above ground level.
• Supplied with a standard spray lance.

Applications & Use Cases:

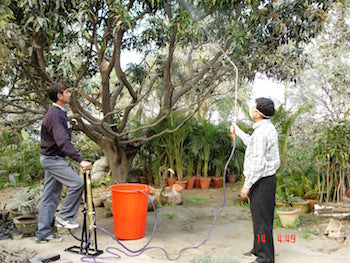

• Pesticide spraying in gardens, agriculture, horticulture, sericulture and other crop-growing settings.
• Washing and cleaning with water.

This Sprayer conforms to Crop Protection Equipment - Foot Sprayer for Agriculture as per IS 3652.
Use spray solutions in accordance with their label directions and the sprayer operating instructions.

What is the HYMATIC HY-301 used for?
The HY-301 is a foot-operated sprayer for crop-care spraying in agriculture, gardens, nurseries and horticulture. It can also be used for washing and cleaning with water.

Does the sprayer require electricity, a battery or petrol?
No. The HY-301 is operated manually using a foot pedal and does not require electricity, a battery or petrol.

Does it draw liquid from a separate container?
Yes. The sprayer uses a suction hose with a filter to draw liquid from an external container.

What are the working pressure and minimum discharge?
The listed average working pressure is 6 bar, and the minimum discharge is 1,200 ml per minute.

How high can the HY-301 spray?
The listed spraying height is up to 20 feet, approximately 6 metres. Actual reach can vary with operating pressure and spraying conditions.

What is the pump made from?
The pump barrel and pressure chamber are made from seamless brass tubing. The sprayer has a metal support frame and a double compression spring mechanism.

Can it be used to spray pesticides?
Yes, it is intended for agricultural pesticide spraying. Use only suitable spray solutions and follow the chemical label directions and sprayer operating instructions.

How can I request a quotation for a bulk order or GeM tender?
Email sales@rsragro.com with your required quantity, delivery location and tender specifications to confirm the configuration and request a quotation.
