Complete Maintenance & Troubleshooting Guide for 4-Stroke Knapsack Power Sprayers
Share

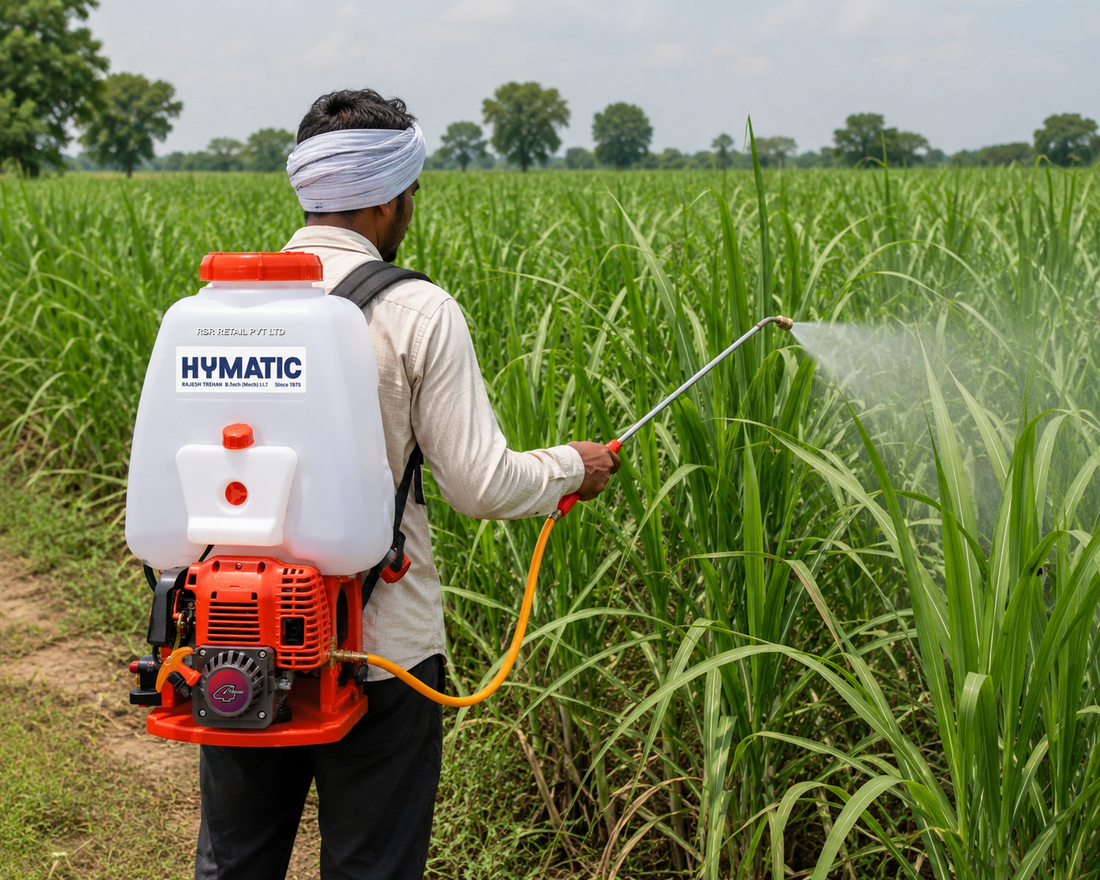

Your HYMATIC 4-stroke power sprayer is designed for durability and high performance. In this guide, we cover essential maintenance tips, common troubleshooting steps, and expert advice to keep your 25-litre backpack sprayer running smoothly in the field.
Overview of 4-Stroke Knapsack Power Sprayers
4-stroke power sprayers are fuel-efficient, low-vibration machines ideal for agricultural and commercial spraying. Unlike 2-stroke models, they don't require fuel-oil mixing and are easier to maintain — if done correctly.
Routine Maintenance Checklist
Daily (Before or After Each Use)
- Check fuel level (use only clean, unleaded petrol).
- Inspect the air filter for dust buildup.
- Clean the spray gun nozzle.
- Flush the tank and pump system with clean water (especially after chemical use).
- Check hose and pipe for kinks, cracks, or leakage.
Weekly
- Clean or replace the air filter.
- Inspect spark plug (clean or replace if fouled).
- Check oil level (engine oil – 10W30 grade).
- Tighten all bolts, fasteners, and clamps.
Monthly
- Drain and replace engine oil (after 20–25 hours of usage).
- Inspect recoil starter and fuel lines.
- Lubricate moving parts like throttle cable, trigger lever, etc.
Common Troubleshooting Guide
Engine Does Not Start
Possible Causes:
- Empty fuel tank
- Dirty or choked carburetor
- Spark plug dirty or damaged
- Engine oil below safe level (some models have auto-shutoff)
Fix:
- Refill fresh petrol
- Clean carburetor using carb cleaner
- Remove spark plug, clean or replace
- Check oil level and refill
Engine Starts but Sprayer Doesn't Spray
Possible Causes:
- Clogged suction pipe or filter
- Nozzle blocked
- Pump airlock
- Pressure regulator stuck
Fix:
- Clean inlet filter and suction hose
- Flush and clean nozzle tip
- Prime the pump manually (let gravity flow or remove nozzle)
- Adjust pressure knob
Spray Pressure Is Low
Possible Causes:
- Worn-out piston or diaphragm
- Loose fittings causing air leak
- Nozzle partially blocked
Fix:
- Replace piston/seals (if worn)
- Check all pipe connections
- Clean or replace the nozzle
Fuel & Oil Tips
- Use only clean, unleaded petrol — contaminated fuel can damage the carburetor.
- For engine oil, use SAE 10W30 grade. Top up only when the engine is cool.
- Never mix oil into the fuel — this is a 4-stroke engine, not 2-stroke.
Storage & Seasonal Care
- Drain fuel completely to avoid gum deposits.
- Run engine until it stops to empty the carburetor.
- Clean tank and filter.
- Cover and store in a dry place.
Safety Reminders
- Never refuel a hot engine — wait 10–15 minutes after operation.
- Always wear gloves, mask, and protective eyewear when spraying chemicals.
- Keep away from open flames or heat while using or refueling.
